The chain of the combined harvester is a metal chain ring or ring, which is used for the transmission and traction of the combined harvester. The chain drive is an indispensable transmission mechanism in the combined harvester. Its work directly affects the normal operation and performance of each part of the harvester.

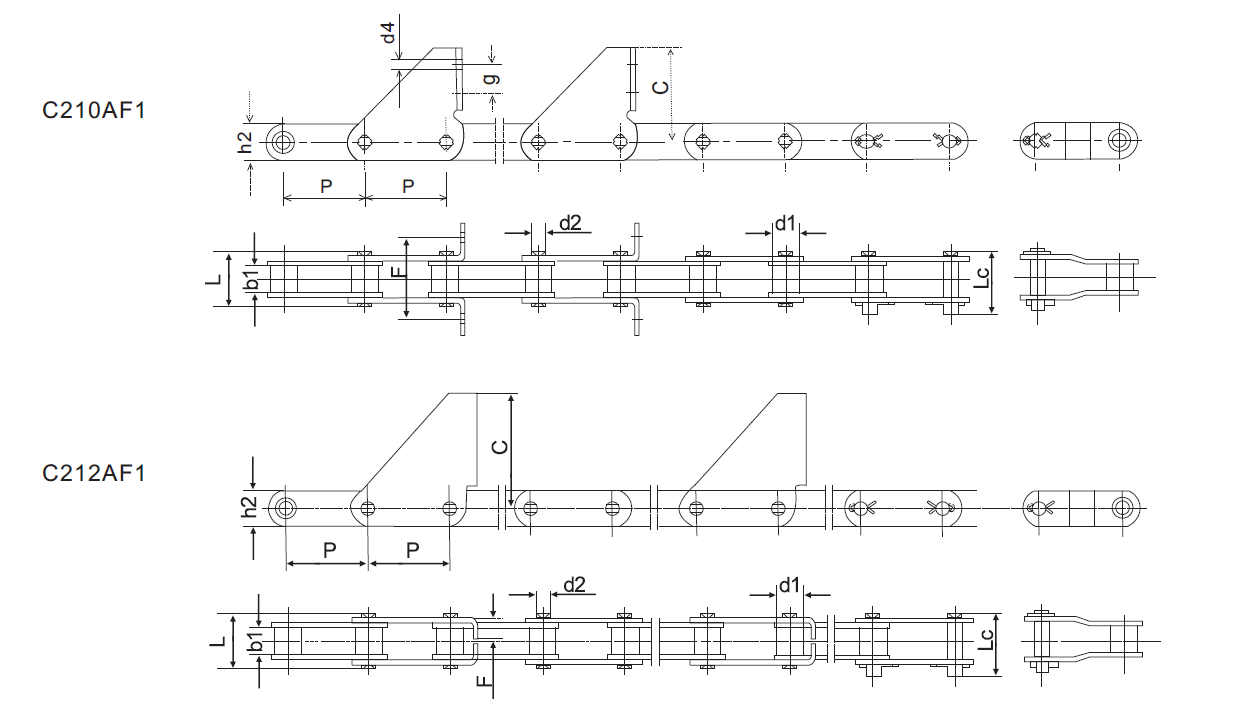

| Select | Chain No. | Pitch mm | Roller diameter mm | Width between inner plates mm | Pin diameter mm | pins length mm | Inner plates depth mm | Attachment Dimensions mm | Ultimate tensile strength kN | Inquiry | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | F | C | d4 | g | Q min | |||
| C210AF1 | 31.75 | 10.16 | 9.4 | 5.08 | 20.7 | 23.3 | 15 | 35.2 | 54 | 7 | 23 | 21.8 | ||
| C212AF1 | 38.1 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18 | 10.92 | 56 | - | - | 31.1 | ||
