Deep groove ball bearings are suitable for high speed operation, and are very durable and do not require frequent maintenance. This type of bearing has a small friction coefficient, a high limit speed, and a wide range of sizes and forms. It is used in precision instruments, low-noise motors, automobiles, motorcycles, and general machinery. It is the most widely used bearing in the machinery industry. It mainly bears radial load and can also bear a certain amount of axial load.
Select | 轴承型号 | 尺寸 | 重量 | Inquiry | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|

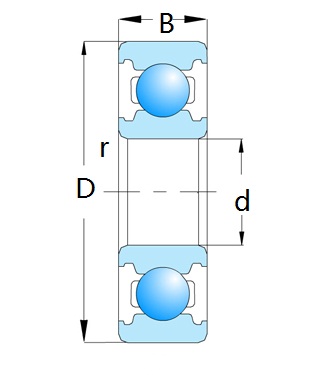

d | D | B | rs min | Kg | |||||||
in | mm | in | mm | in | mm | in | mm | ||||
R10 | 5/8 | 15.875 | 1-3/8 | 34.925 | 0.2181 | 5.54 | 0.031 | 0.8 | 0.03 | ||
R12 | 3/4 | 19.05 | 1-5/8 | 41.275 | 0.3126 | 7.94 | 0.031 | 0.8 | 0.052 | ||
R14 | 7/8 | 22.225 | 1-7/8 | 47.625 | 0.3752 | 9.53 | 0.031 | 0.8 | 0.07 | ||
R16 | 1 | 25.4 | 2 | 50.8 | 0.3752 | 9.53 | 0.031 | 0.8 | 0.085 | ||
R18 | 1-1/8 | 28.575 | 2-1/8 | 53.975 | 0.3752 | 9.53 | 0.031 | 0.8 | 0.091 | ||
R20 | 1-1/4 | 31.75 | 2-1/4 | 57.15 | 0.3752 | 9.53 | 0.031 | 0.8 | 0.096 | ||
R22 | 1-3/8 | 34.925 | 2-1/2 | 63.5 | 0.4374 | 11.11 | 0.031 | 0.8 | 0.154 | ||
R24 | 1-1/2 | 38.1 | 2-5/8 | 66.675 | 0.4374 | 11.11 | 0.031 | 0.8 | 0.172 | ||
R6 | 3/8 | 9.525 | 7/8 | 22.225 | 0.2189 | 5.56 | 0.016 | 0.4 | 0.009 | ||
R8 | 1/2 | 12.7 | 1-1/8 | 28.575 | 0.25 | 6.35 | 0.016 | 0.4 | 0.02 | ||
